Why are they called jack studs?

The jack stud is sometimes called a trimmer stud. The term “jack” derives from mid–16th century England, where it referred to a lad, knave, or common man: Jack: (1) A man of the common people, a lad, fellow, chap, especially a low-bred or ill-mannered fellow, a knave.

What's the difference between a cripple stud and a jack stud?

What's the difference between a jack stud and a cripple stud? While a jack stud is used to support the weight of the header, a cripple stud is cut to add additional framing above the door or window opening, and below a window.

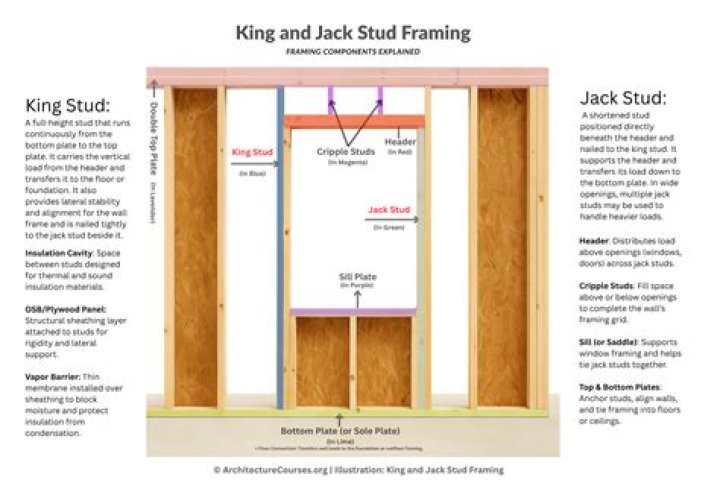

What's the difference between a king stud and a jack stud?

Jack and king studs

The king studs are the same length and size of regular studs in a wall; the only difference is that they are positioned at the ends of a header so they don't necessarily land at regular on-center stud locations.

What is the purpose of a jack stud?

A jack stud is a stud that has been cut down to be placed above and/or below an opening. The jack stud provides support to the lintel trimmer and sill trimmer.

What are the 4 types of studs?

Stud

• King stud: On either side of a window or door, running from the bottom to top plate.
• Trimmer or jack: On either side of a window or door, running from the bottom plate to the underside of a lintel or header.
• Cripple stud: Either above or below a framed opening.
• Post or column: Group of studs fastened side-by-side.

How To Build Jack Studs For Door Opening Wall Framing

What is a king stud in construction?

A king stud is a vertical structural element that is placed off layout adjacent to a framed opening on each side, such as a door or window. It is the same length as the common studs in the wall and fastened in a similar manner.

What does a cripple stud do?

Cripple studs are non-structural but provide a nailing base for siding or interior wall coverings. Spaced 16 or 24 inches on center, they carry the regular wall stud layout across the framed opening. Both cripple studs and cripple rafters are made from the same stock as other studs and rafters—they're just cut shorter.

What is the bottom 2x4 of a wall called?

A horizontal piece at the bottom of the wall is called the bottom plate. The studs are nailed to this plate, which is nailed to the floor. At the top of the wall is the top plate. Often a doubled 2x4, it anchors the top ends of the studs as well as ties the wall into the ceiling.

Why do walls have a double top plate?

The top plate serves an important role in providing wood fiber for the perimeter nailing of structural and/or insulated sheathing. A second top plate, also known as a “double plate” or “very top plate” is applied in the field to lock together intersecting walls.

Why are 2x4 called studs?

Etymology. Stud is an ancient word related to similar words in Old English, Old Norse, Middle High German, and Old Teutonic generally meaning prop or support. Other historical words with similar meaning are quarter and scantling (one sense meaning a smaller timber, not necessarily the same use).

Can you remove a jack stud?

The only way to trim it (which you shouldn't do) would be to rip it out, remove all the nails, and cut it in half. The second you rip it out is when that header drops and you need more than a new front door.

How many jack studs go under a header?

How many jack studs for a 3 foot opening:-as per general rules and guidelines, for a window or door opening that span 3 foot (36 inches) or less such as 30 inches, 32 inches, you will need 1 jack studs (trimmer) and 1 king studs at both end.

What are three types of studs?

Considering the shape of a stud, these are categorized into three basic types:

• Fully Threaded Stud.
• Tap-End Stud.
• Double-End Stud.

Are jack studs and trimmers the same?

The jack stud is shorter than the full-length king stud on each side of a window or door opening but critical for holding up the ends of the header that bridges the gap. The jack stud is sometimes called a trimmer stud.

Can two windows share a king stud?

They certainly can. In fact, you can get them closer together still, if you like, by eliminating the king stud, using one or two trimmer studs (as desired for spacing), and running a continuous header.

What is a tie plate in framing?

Stud plate ties offer general solutions for connecting the stud to the top and bottom plates to help create a continuous load path in rooftop lift resistance. These metal ties can be used to make a connection to either the top or bottom plate, with several products that are suitable for double top plates and studs.

What is a plate that rests on top of the wall studs also called choose two?

Upper wall plate, top plate or ceiling plate — upper wall plate which is fastened along the top of the wall studs, before the wall is lifted into position and on which the platform of the next story or the ceiling and roof assembly rest and are attached.

What does RO mean in framing?

R.O. stands for “rough opening.” It is the roughed-out space or opening where a window is to be installed. The R.O. should be approximately 7/8“ larger than the outside measurement (OSM) of the window frame.

What is the wood on top of foundation called?

On most homes, the sill plate is the first piece of wood in the entire house, and it essentially anchors the house to the foundation. You can see the sill plate from the inside of your house if you look along the top of the masonry walls in the basement or crawlspace.

What do you call the tiny bits of wood below the skirting?

A plinth block (also known as a skirting block) is simply a piece of MDF or wood which is slightly thicker and wider than your skirting board and architrave. It sits at the bottom of the architrave and either the right or left of the skirting board depending on the position of the door frame.

What is a pony wall in a house?

A pony wall is nothing more than a short wall, and the term is often used interchangeably with “knee wall” or “cripple wall.” Pony walls, like regular walls, have top and bottom plates, that is, the horizontal members that the vertical studs fasten to.

What is the shorter stud next to the door called?

Studs cut short to fit below or above window and door openings are called cripples.

What is a balloon house?

A balloon frame house is built using dimensional lumber fastened with nails, not joinery like the earlier timber frames. So, how is that different from how we build houses today? Well, what makes a balloon frame unique is that the framing members run all the way from the mud sill to the rafters.
